Product Description

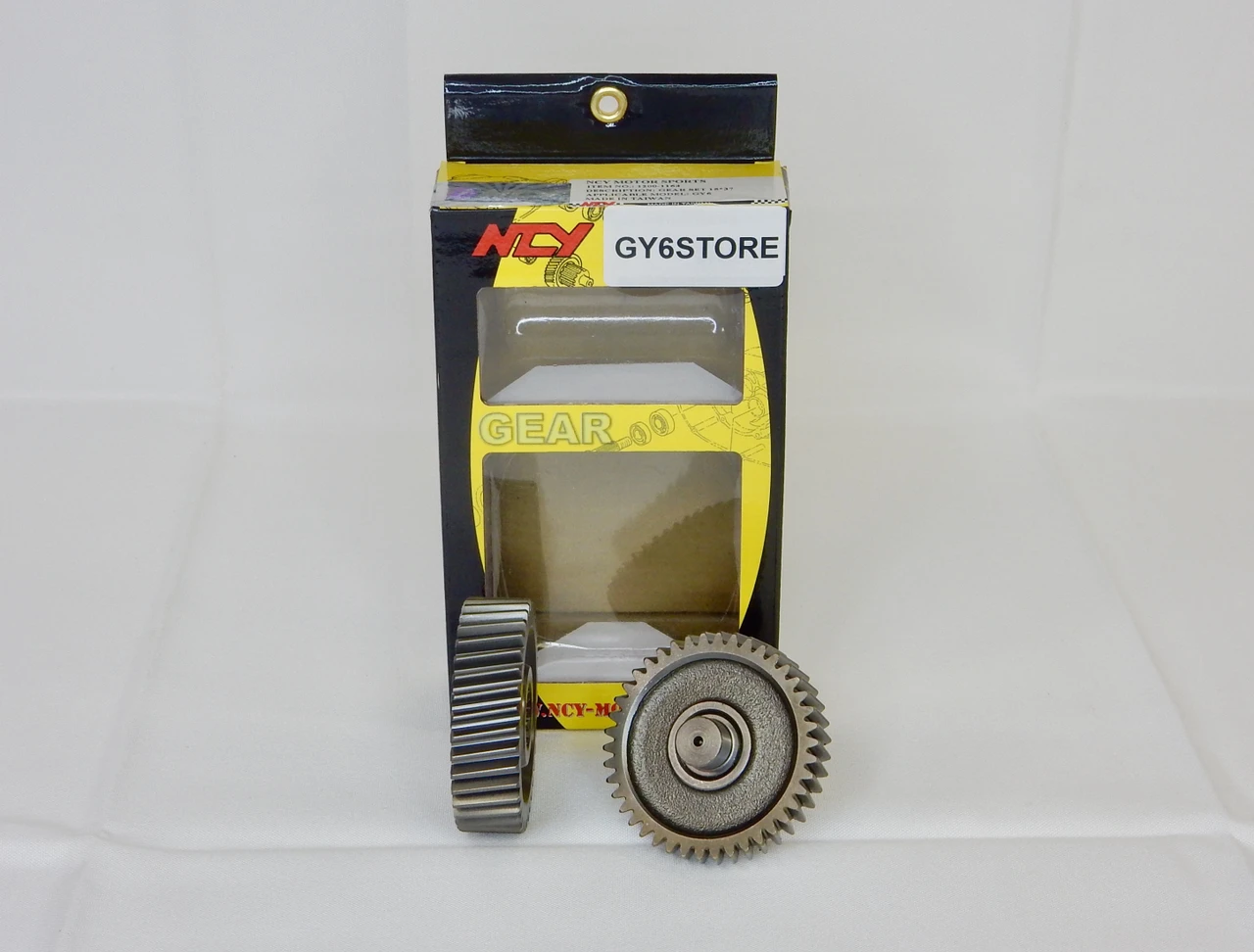

NCY 16×36 PERFORMANCE UPGEAR SET
PRE-PRESSED • READY TO INSTALL • GY6 125/150cc & BIG BORE
Upgrade your GY6 final-drive gearing without having to press the new countershaft gear yourself.
This NCY 16×36 upgear set comes PRE-PRESSED onto the countershaft, eliminating the need to remove the original gear and press the NCY gear onto your existing shaft.
The 16×36 combination provides a 2.25:1 final gear ratio, compared with the commonly used stock 13×40 ratio of approximately 3.077:1. This represents approximately a 27% upgear and is designed to provide greater top-speed potential and a more usable RPM range on properly powered GY6 performance engines.
PRODUCT DETAILS
• Brand: NCY
• Gear Combination: 16×36
• Type: Performance Final Drive / Upgear Set
• Gear Ratio: 2.25:1
• Approx. 27% Upgear vs. 13×40 Stock Gearing
• Countershaft Gear: PRE-PRESSED
• Ready for Transmission Installation
• Excellent for Big-Bore & Performance Builds
• Made in Taiwan
16-TOOTH COUNTERSHAFT
• Teeth: 16
• Spline Length: 24mm
• Gear OD: 31.1mm
• Overall Length: 60mm
• Press-On Area: 12.08mm L × 19.08mm OD
• End Sections: Approx. 9–10.5mm L × 15mm OD
36-TOOTH FINAL DRIVE GEAR
• Teeth: 36
• Inner Spline: 19
• Outside Diameter: 71.2mm
• Inside Diameter: 18mm
• Width: 20mm
PERFORMANCE BENEFITS
• Taller gearing for increased top-speed potential
• Lower engine RPM at a given road speed compared with stock gearing
• Helps take advantage of additional power from big-bore engines
• More usable RPM range for properly tuned performance builds
• Pre-pressed countershaft saves installation time and eliminates the pressing procedure
FITMENT
Designed for compatible GY6 125cc / 150cc and performance big-bore engine applications using the corresponding GY6 transmission configuration.
Common engine families include:
• 157QMJ
• 152QMI
• 1P57QMJ
• YN1P57QMJ
• BN157QMJ
• JJ157QMJ
• Other compatible QMI / QMJ configurations
QMK / GY7 FITMENT NOTE
Fitment on QMK / GY7 engine variants has not been confirmed.
Due to differences between manufacturers and transmission configurations, please compare your original gear dimensions, spline count and engine configuration before ordering.
Do not purchase based solely on engine displacement.
IMPORTANT
Upgearing does not increase engine horsepower. Taller gearing provides greater top-speed potential when the engine has sufficient power to pull the higher ratio.
Actual performance will vary depending on engine displacement, modifications, CVT tuning, tire size, vehicle weight and other factors.
CONDITION
NEW
PACKAGE CONTENTS
• Pre-Pressed 16-Tooth Countershaft Assembly
• 36-Tooth Final Drive Gear
PRE-PRESSED • READY TO INSTALL
No hydraulic press is required to install the 16-tooth gear onto the countershaft because this step has already been completed.
Made in Taiwan
